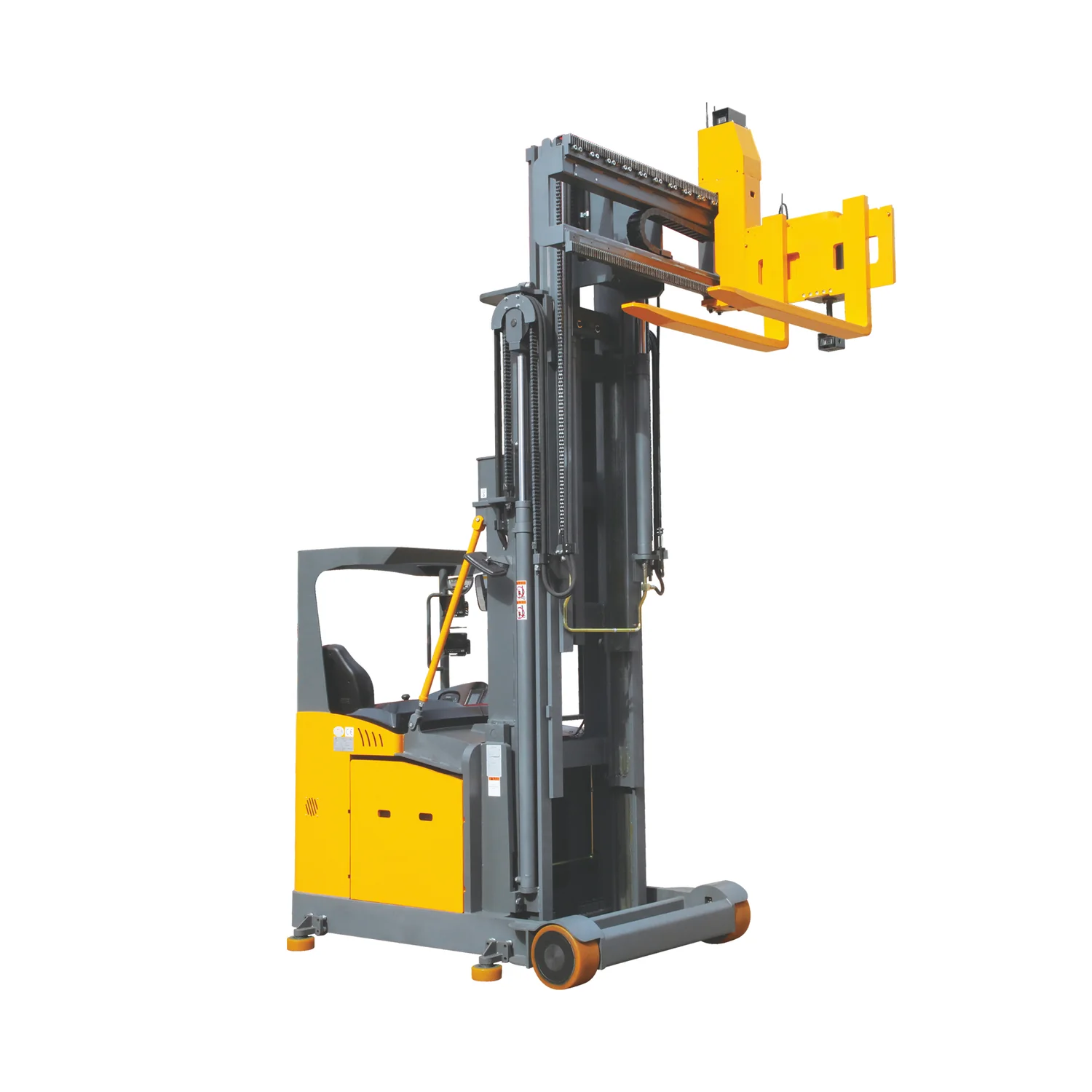

OPD15/315 Very Narrow Aisle Forklift
The OPD15/315 is a high-lift VNA (Very Narrow Aisle) forklift designed for dense storage environments. It features a 3,300 lb capacity, 315" lift height, and rotating forks that minimize aisle width to just 67". Powered by a 48V/1000Ah battery, this model is equipped with a full AC system, ZF gearbox, EPS steering, and a multifunction dashboard, making it an advanced choice for industrial warehousing.
Key Features & Benefits

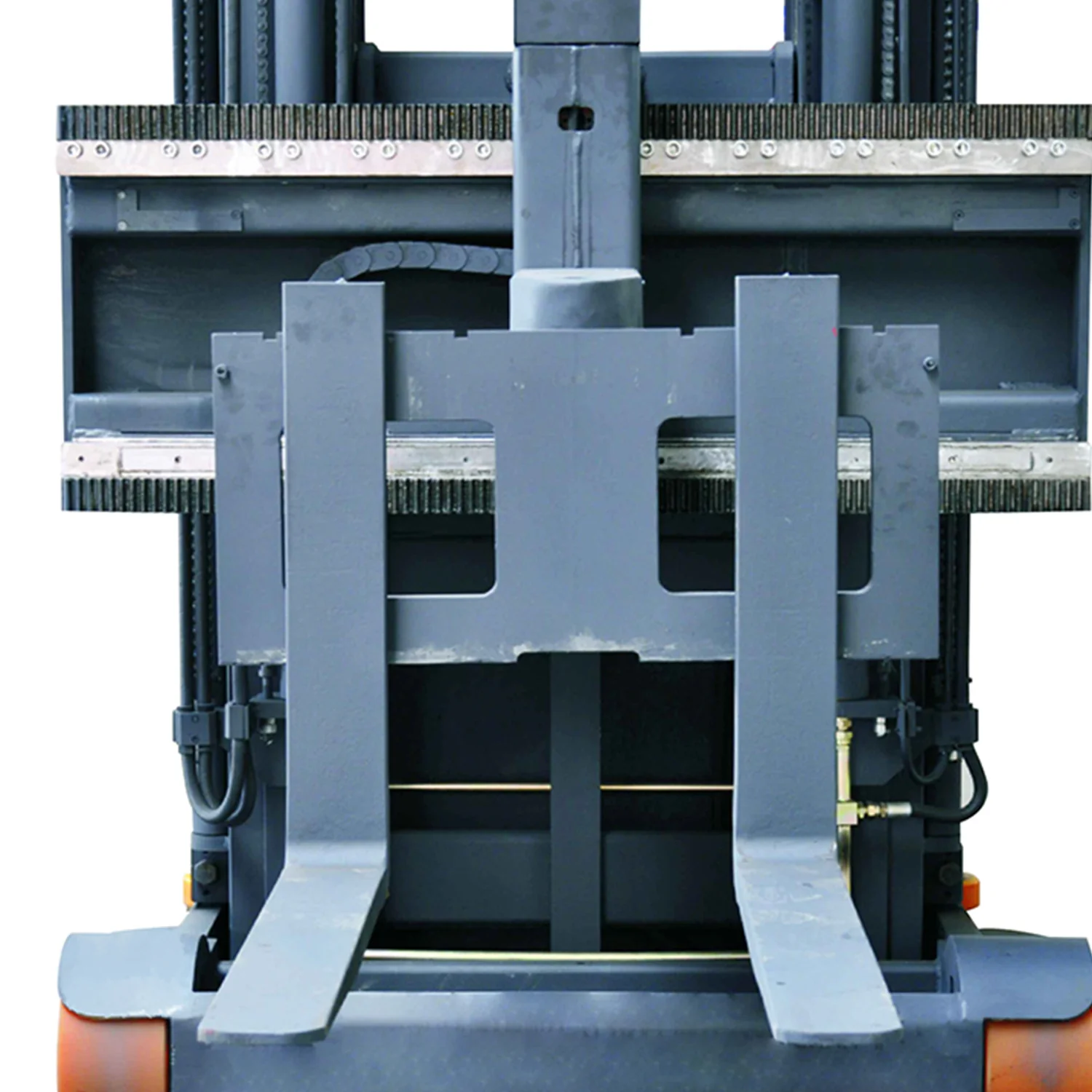

- Rotating Forks – Enter aisles without turning the truck; forks rotate left and right for flexible access.
- Space-Saving Design – Reduces warehouse aisle width by up to 50% compared to counterbalance forklifts.
- Full AC Drive System – Advanced performance with EPS steering and electromagnetic multi-valve control.
- Massive 48V/1000Ah Battery – Delivers all-day performance with a 48V/130A external charger.
- ZF Gearbox + Hydraulic Precision – German transmission paired with Harwer hydraulic system.
- Multifunction Instrument Panel – Displays driving direction, brake status, speed, hours, and error codes.
- Shock-Absorbing Seat – Comfortable operator seat with full suspension and adjustable steering column.
- Side-Pull Battery Tray – Easy battery maintenance and replacement without lifting equipment.
- Certified Build Quality – Equipped with high-standard components verified by European testing agencies.
Specifications
| Load Capacity | 3,300 lbs |
| Load Center | 23.6" |
| Turning Radius | 63" |
| Aisle Width | 67" |
| Fork Dimensions | 49.2" L × 9.8–33.2" W × 1.8" Thick |
| Inside Fork Width | 0.1–23.4" |
| Overall Width | 63" |
| Overall Length | 131.5" |
| Max Lifting Height | 315" |
| Mast Height (Lowered/Extended) | 149.6" / 366" |
| Fork Lowered Height | 1.8" |
| Battery | 48V / 1000Ah |
| Charger | 48V / 130A External |
| Travel Speed (L/U) | 5 / 5.3 mph |
| Lifting Speed (L/U) | 8.7 / 9.8 inch/s |
| Lowering Speed (L/U) | 11.8 / 11.8 inch/s |
