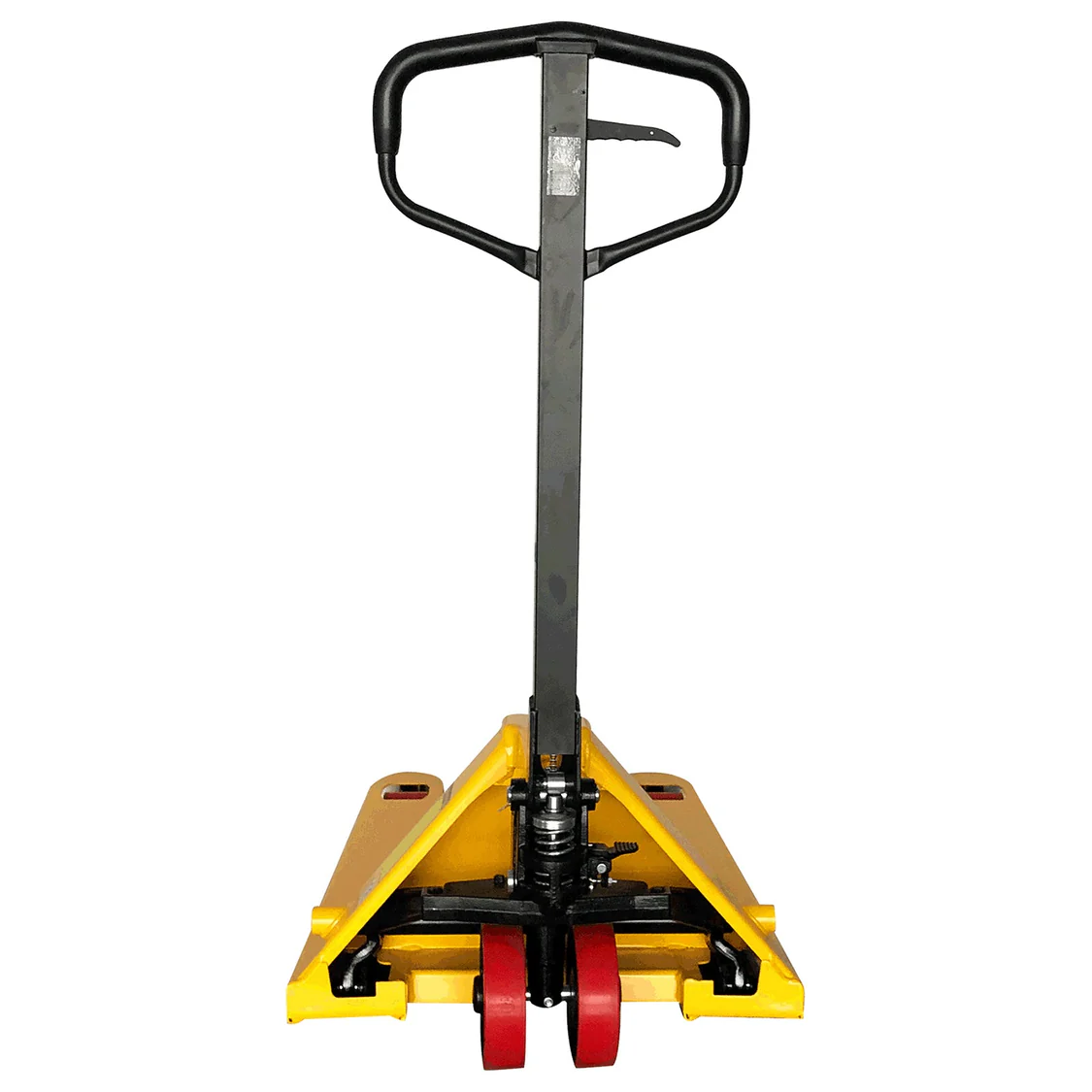

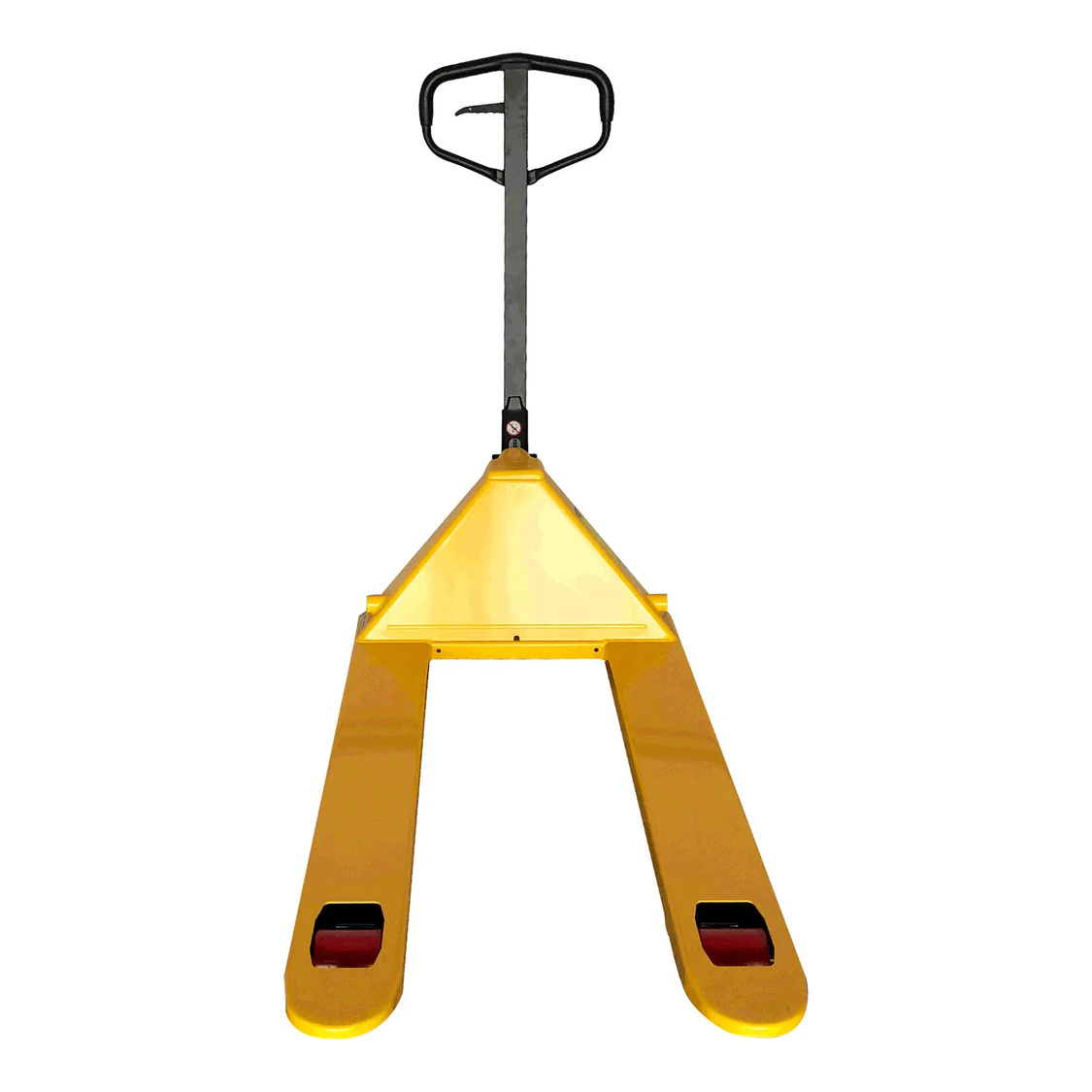

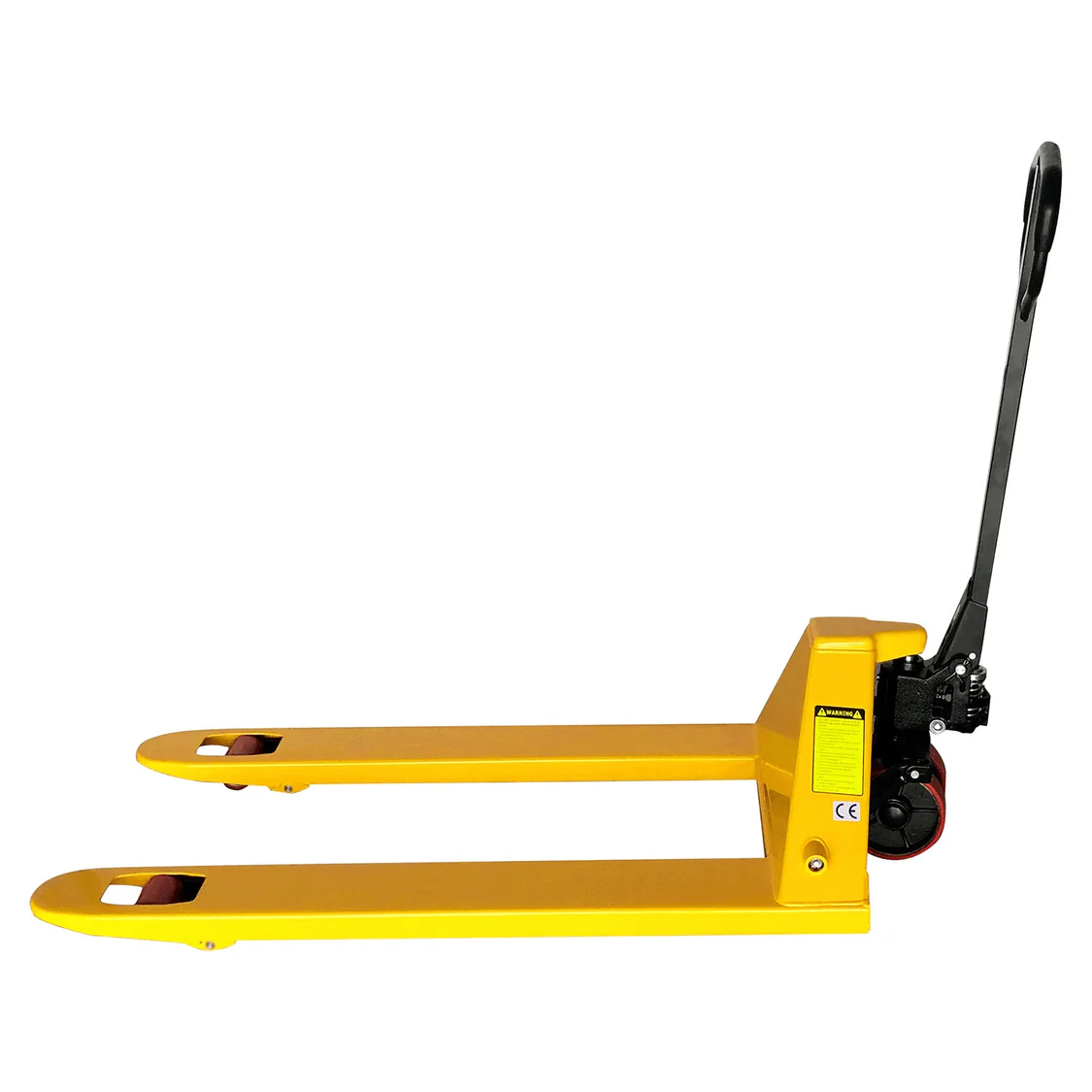

BF-III-1 Manual Pallet Jack – Heavy-Duty, Leak-Proof & Built to Last
The BF-III-1 is a durable and high-capacity manual pallet jack designed for industrial use. With a 5,500 lbs load capacity and 48" × 21" forged steel forks, it features an integrated hydraulic pump, robust frame structure, and precision-controlled lowering system. Whether for warehouses, loading docks, or manufacturing floors, it delivers reliable and efficient material handling every time.
Key Features & Benefits
- Integrated Pump Design – Built with a one-piece hydraulic pump system that eliminates welding joints, minimizing leakage and extending service life.
- Reinforced Frame Structure – Engineered with a strengthened chassis to ensure higher load-bearing capacity and long-term operational stability.
- Quick Chain Installation – The handle base comes pre-drilled for easy attachment of the control chain, improving assembly speed and safety.
- Controlled Fork Lowering – Features a hand-operated lowering lever with an integrated overload valve for smooth, stable descent while protecting the hydraulic system.
Tags: BF-III
Technical parameter
XILIN FORKLIFT OPD15/315 Very
Hydraulic Pallet Jack 5500lbs
XILIN 5500 lbs Max 197” Lead A
XILIN FB25R-Li-189 5,500 lbs
Load Capacity & Dimensions
| Load Capacity | 5,500 lbs |
| Turning Radius | 53" |
| Aisle Width | 71.4" |
| Fork Size | 48" L × 21" W |
| Single Fork Width | 6.3" |
| Fork Thickness | 2.1" |
| Inside Fork Width | 7.9" |
| Fork Lowered Height | 3" |
| Lifting distance | 4.3" |
| Max lifting Height | 7.3" |
| Overall Width | 21" |
| Overall Length | 63.5" |
| Overall Height | 47.8" |
| Service Weight | 129 lbs |
