Products Description
🔎 Designed for Daily Use, Backed by Real Experience
🔧 Compact 3,300 lb Lithium Electric Forklift – 197" Lift
The CPD15SE-197 is a compact three-wheel electric counterbalance
forklift with a 3,300 lb load capacity and a maximum lift height of 197
inches. Designed for indoor and outdoor use, it offers tight turning,
stable load handling, and energy-efficient performance with a 24V /
250Ah lithium battery.
⚙️ Rear-Wheel Drive & Power Steering
This model features rear-wheel drive and electric hydraulic power steering for agile movement in tight spaces. It’s equipped with:
- High-torque AC drive motor with regenerative braking
- Electric brake system with safe hill-hold control
- Rubber tires for indoor/outdoor traction
- Heavy-duty metal plate cover for durability
Ideal for warehouse docks, production floors, or narrow lane logistics.
🔋 Lithium Battery with Side-Pull Design
The CPD15SE-197 uses a 24V / 250Ah lithium battery that supports side
extraction for fast replacement or maintenance. A digital display on the
dashboard shows battery status, working hours, and fault codes in real
time. Optional external chargers available upon request.
🧯 Operator Controls & Safety Features
- Hydraulic lift/tilt via hand levers with smooth proportional control
- LED lights and reverse buzzer for improved visibility
- Emergency stop switch located near dashboard
- Seat switch with safety lockout
- Electronic brake lock when key is off or seat is empty
Fully compliant with warehouse safety standards.
🛠️ Routine Maintenance & Service Access
- Battery access via side-pull tray or lifting handle
- Inspect brake clearance, tires, and steering joints every 50 hours
- Grease mast rollers and pivot points every 100 hours
- Check oil level in hydraulic tank monthly (VG46 recommended)
- Review dashboard error codes before shift use
Service panels open from the top and side for easy technician access.
🛡️ Warranty & Support You Can Count On
All new Xilin electric forklifts include a 1-year limited warranty covering the powertrain, electronics, and hydraulic system. The lithium battery is covered for 6 months. Wear parts (tires, seals, brushes) are covered for 3 months.
Here’s how our support works:
- Within 30 days: Free parts, remote support, and round-trip shipping if needed
- Day 31 to 1 year: Free parts and help; customer pays 50% return freight
- After 1 year: Lifetime remote support; parts and shipping quoted as needed
Questions? Contact ruyi@ningboruyi.com — our U.S./.C.N. -based team is here to help.
The CPD15SE-197 is a 3,300 lb three-wheel lithium forklift with a 197" lift height, perfect for high-bay stacking, indoor-outdoor use, and tight-space maneuvering. With side-pull battery access and responsive electric controls, it’s built to keep your workflow moving.
Tags: New energy charging piles
Technical parameter
XILIN FORKLIFT OPD15/315 Very
Hydraulic Pallet Jack 5500lbs
XILIN 5500 lbs Max 197” Lead A
XILIN FB25R-Li-189 5,500 lbs
CPD15SE-197 Electric Forklift – Powerful Performance in Tight Spaces
The CPD15SE-197 is a three-wheel electric forklift designed for narrow aisles and precision tasks. It delivers 3,300 lbs of lifting power and reaches up to 197" in height. With a side-load battery, free-lift mast, and AC drive motor, this model provides smooth operation, enhanced visibility, and quiet performance—ideal for warehouses and distribution centers.
Key Features & Benefits

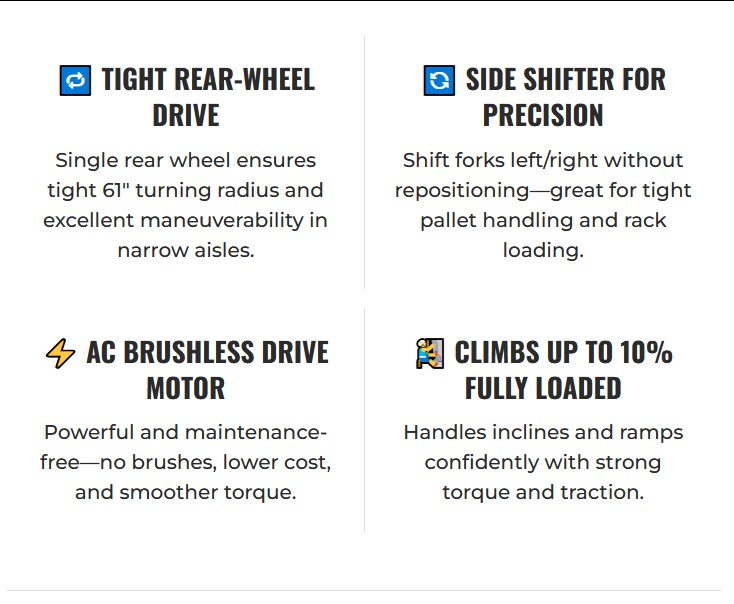

- Hydraulic Power Steering – Easy maneuverability with steering priority function, reduces operator fatigue in long shifts.
- Side-Load Battery Access – 24V / 320Ah high-capacity battery with convenient side pull-out for quick replacement.
- LED Lighting System – Integrated front and rear lights ensure safe operation in low-light environments.
- AC Drive Technology – Provides strong torque, better energy efficiency, and reduced maintenance.
- Free-Lift Mast & Side Shifter – Precision load positioning with optional attachments for different working scenarios.
- All-Rubber Wheels – Designed for both indoor and outdoor use, ensuring shock absorption and reduced noise.
Steel-Covered Chassis – Durable and resistant to impact, built for long-term industrial use.
Specifications

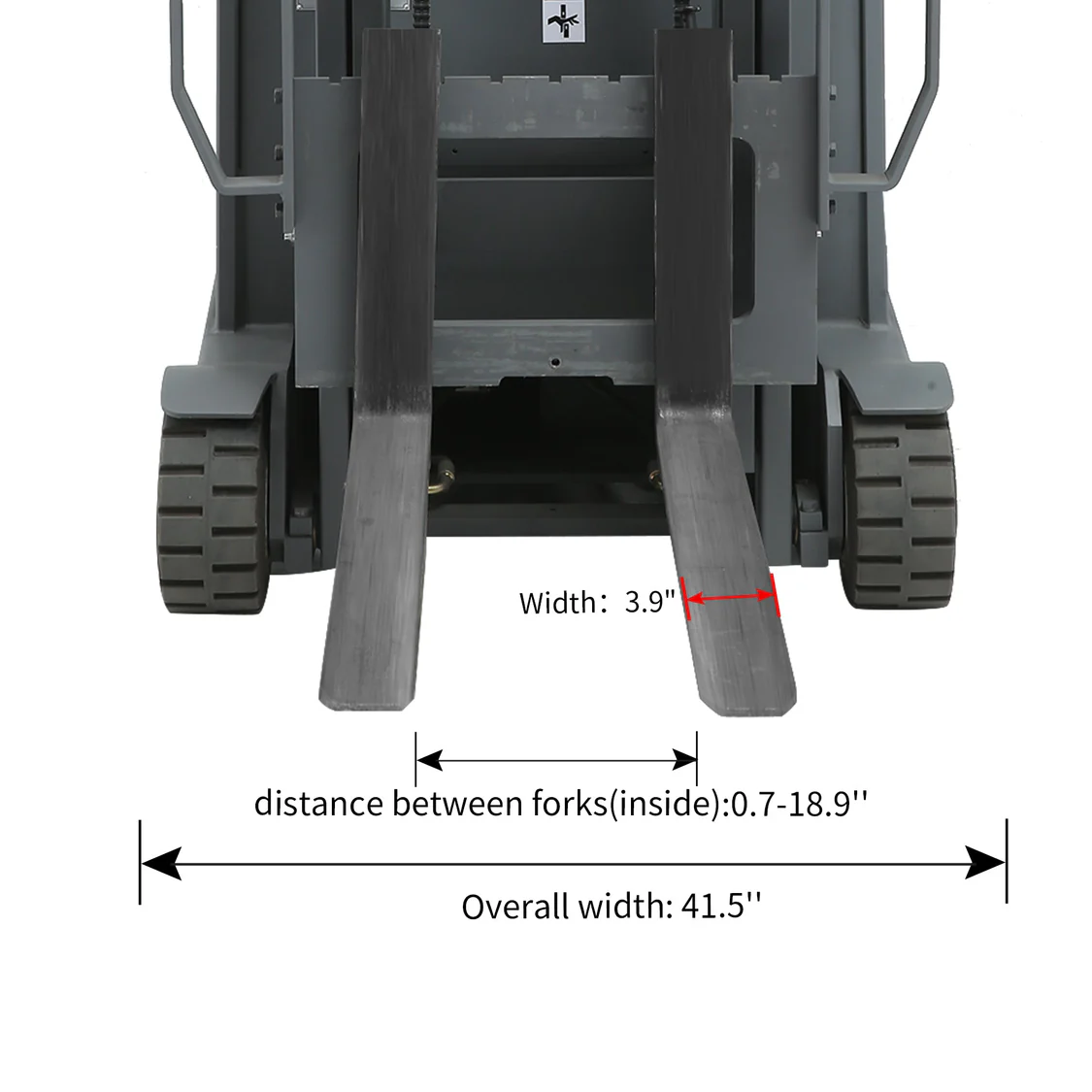

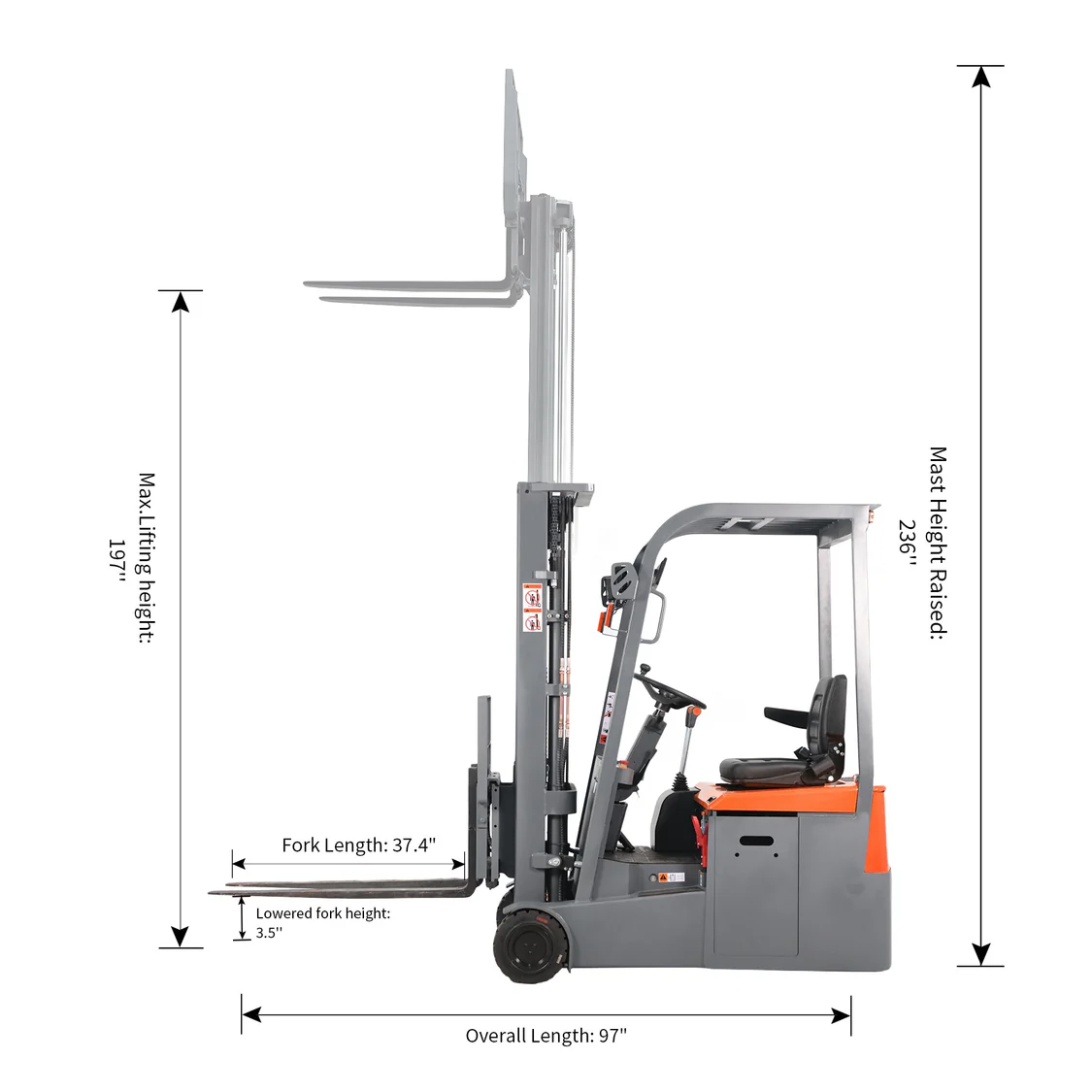

Capacity 3,300 lbs Load Center 19.7" Turning Radius 61" Aisle Width 124" Fork Dimensions 37.4" L × 8.7–26.7" W × 1.3" Thick Inside Fork Width 0.7"–18.9" Fork Lowered Height 0.1" Overall Width 41.5" Max Lifting Height 197" Mast Height (Lowered/Extended) 97" / 236" Travel Speed 4.3 mph (Laden / Unladen) Lifting Speed 3.9 in/s / 5.9 in/s Lowering Speed ＜15 in/s (Both Laden / Unladen) Battery 24V / 320Ah Charger 24V / 40A External
