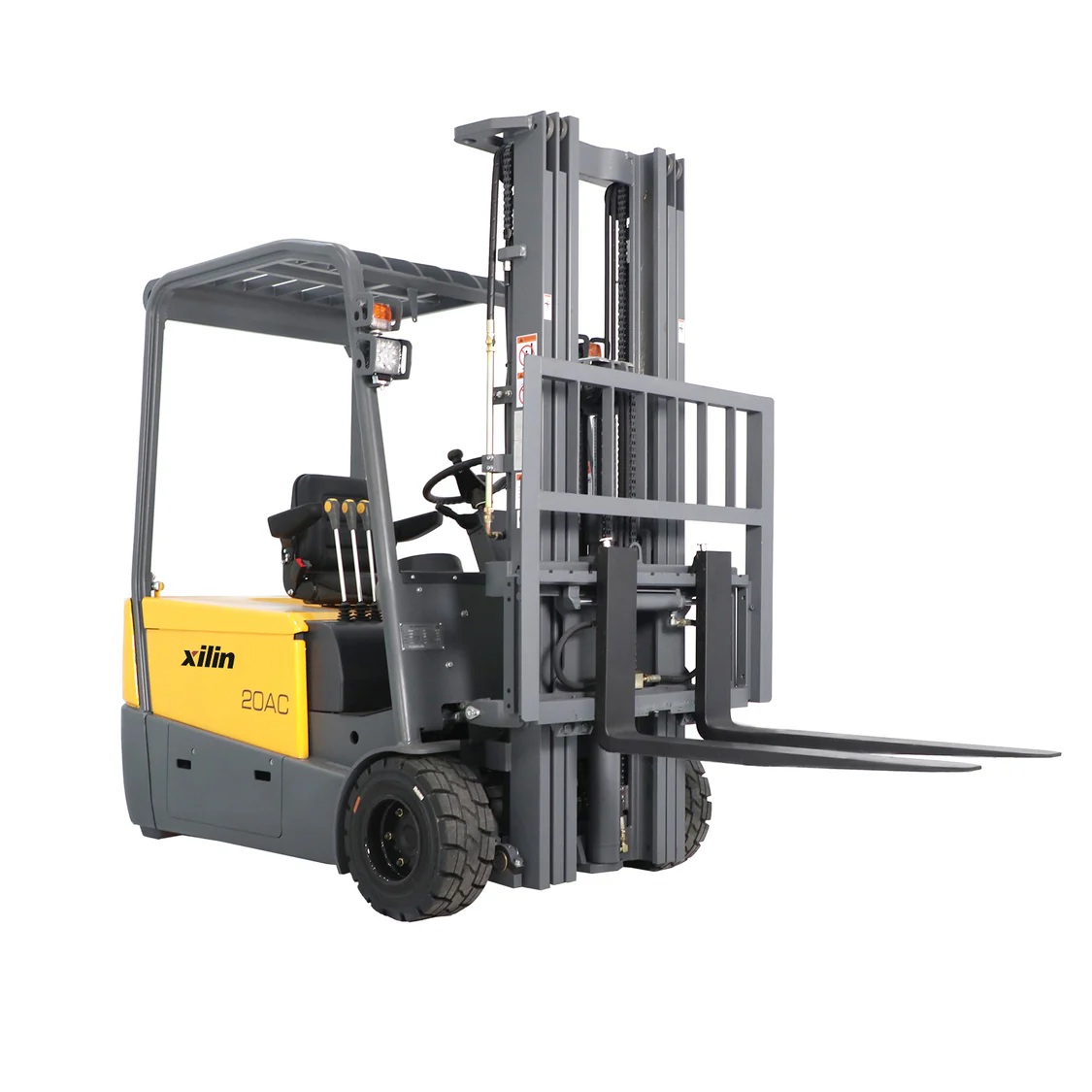

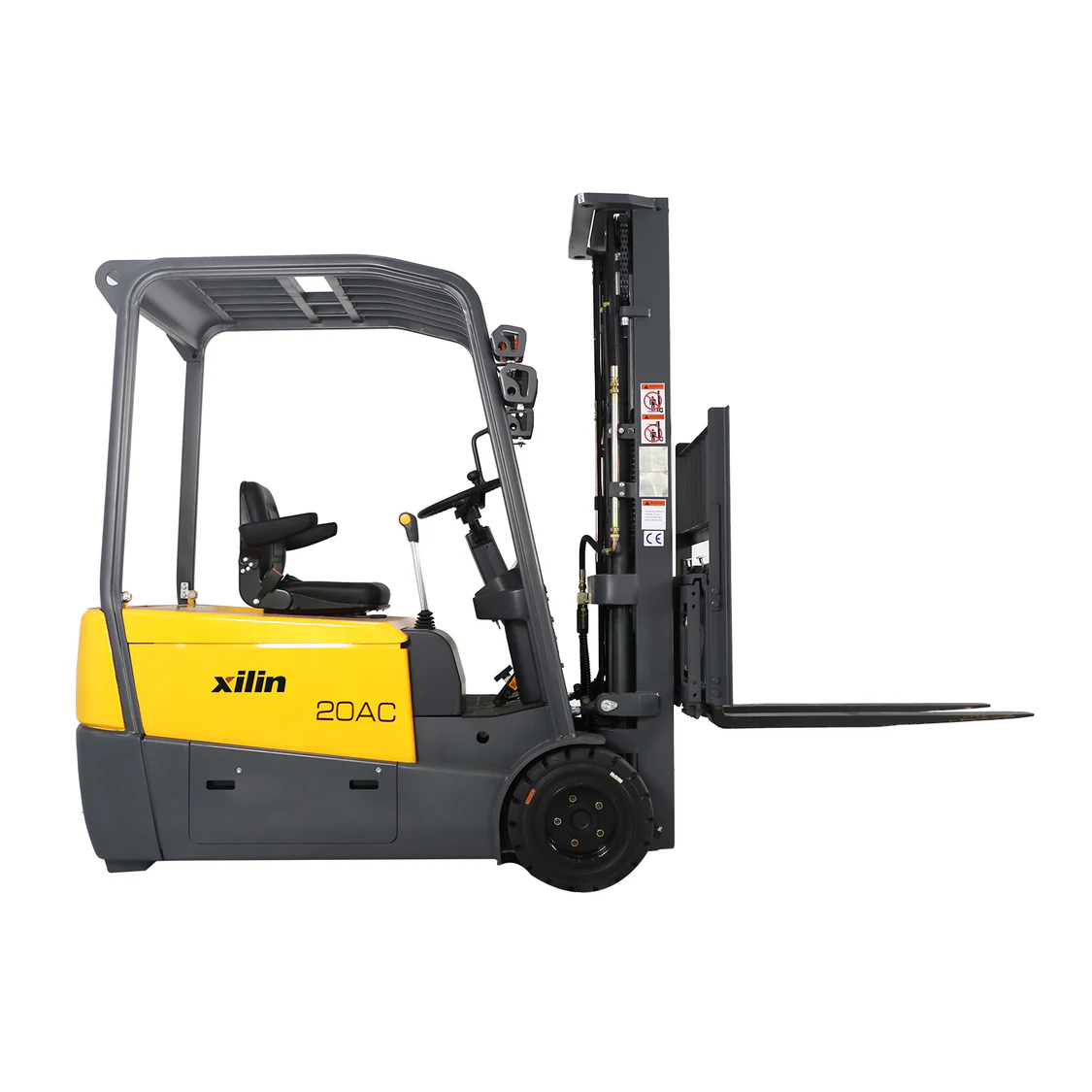

CPD20SA-20-Li-189 Electric Forklift
The CPD20SA-20-Li-189 is a 4,400 lb capacity electric counterbalance forklift equipped with a 48V/450Ah lithium battery, regenerative braking, and a 189" lift height. Built with an imported AC drive system and wet disc brake, this model delivers smooth acceleration, powerful lifting, and responsive braking. Ergonomic controls and integrated safety features make it ideal for industrial, warehouse, and logistics operations.
Key Features & Benefits
- Imported Core Components – Includes drive axle, multifunction LCD panel, and AC control system for stable performance.
- Regenerative Braking – Automatically recharges battery while braking; no pedal needed, reduces energy use.
- 48V/450Ah Lithium Battery – Delivers extended run time with rapid charge capabilities via 48V/150A charger.
- 3-Speed Driving Modes – Easily switch between slow, medium, and fast speeds to suit various working conditions.
- Wet Disc Brake System – Durable under heavy use; suitable for rough or outdoor surfaces.
- Fully Adjustable Cabin – Steering wheel and seat can be customized to driver’s needs, reducing fatigue.
- Integrated Signal & Light Controls – Intuitive toggle system ensures fast access while driving.
- ABS Dashboard & Imported Gauges – Clean layout with side-mounted instruments and enhanced forward visibility.
- Emergency Cutoff Lever – Positioned next to the seat for quick shutdown in case of danger.
Specifications
| Load Capacity | 4,400 lbs |
| Load Center | 19.7" |
| Turning Radius | 65" |
| Aisle Width | 130" |
| Fork Dimensions | 42" L × 9.45–42.8" W × 1.6" Thick |
| Inside Fork Width | 0.1–33.3" |
| Fork Lowered Height | 0.1" |
| Overall Width | 44.5" |
| Overall Length | 122" |
| Max Lifting Height | 189" |
| Mast Height (Lowered/Extended) | 86.6" / 228.4" |
| Battery | 48V / 450Ah Lithium |
| Charger | 48V / 150A External |
| Travel Speed (L/U) | 8 / 8 mph |
| Lifting Speed (L/U) | 9.8 / 16.5 inch/s |
| Lowering Speed (L/U) | <23.6 / <23.6 inch/s |
